Heavy duty laser fume dust chemical fumes applications
Designed for heavy duty laser fume dust chemical fumes applications
- Multi-stage filtration system: filter bag (or high capacity pleated filter),
- medical grade HEPA and chemical filter
- Refillable, 15” deep chemical filter module, up to 66 lbs (30kg)
- LaserBlue gel seal guarantees ZERO FILTER BYPASS
- Dual high speed turbine for high suction, pressure and airflow
- Office friendly, whisper quiet operation
- Digital control panel
- Enhanced mobility with heavy duty lockable casters
Specifications
- Air Flow: 0-480 m³/h / 0-282 CFM
- Max Pressure: 90" W.C. / 22 kPa
- Motor(s): 2 X 1.0 kW High Speed Turbine
- Voltage: 120V or 230V
- Dimensions: 13"W x 21"D x 45"H / 330mm x 533mm x 1143mm

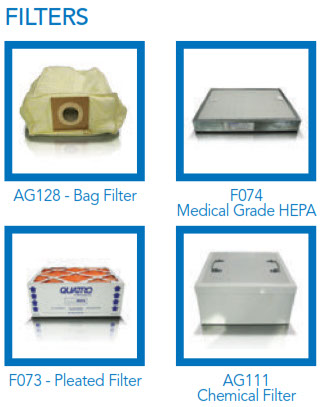

- Filter Sequence:
Antimicrobial high capacity bag filter (F128)
6" Pleated filter, 60% ASHRAE rated (F073)
2” Medical grade HEPA Filter 99.97% (F074)
15“ Chemical filter (AG111) - Optional lnlets: 1.5”, 2”, 3” or 4" diameter | Extraction Articulating Arms
- Discharge: Recirculation grille (Standard configuration);
- Optional 3" or 4" side discharge collars for venting to the exterior
- Sound Level: 52 dBA at full speed
- Controls: Remote ON/OFF, communication capabilities, audible and visual alarms
- Suction hose: 6 feet (2m) of heavy duty hose and clamps
- Quatro reserves the right to modify any specifications, at any time without prior notice.
More Features
- Easy access to the primary filters through the top.
- Fast access to the bag-filter through the side access
- door.
- Large capacity bag-filter allows for economical operation of the system.
- The 15" deep chemical filter and 99.97% HEPA filter are lowered in from the top lid.
- Motors are easily accessed and serviced in minutes via a hinged access door.
- Brushless units and custom filter arrangements are also available.
** Please note: Specifications / Prices Subject To Change Without Prior Notice **
